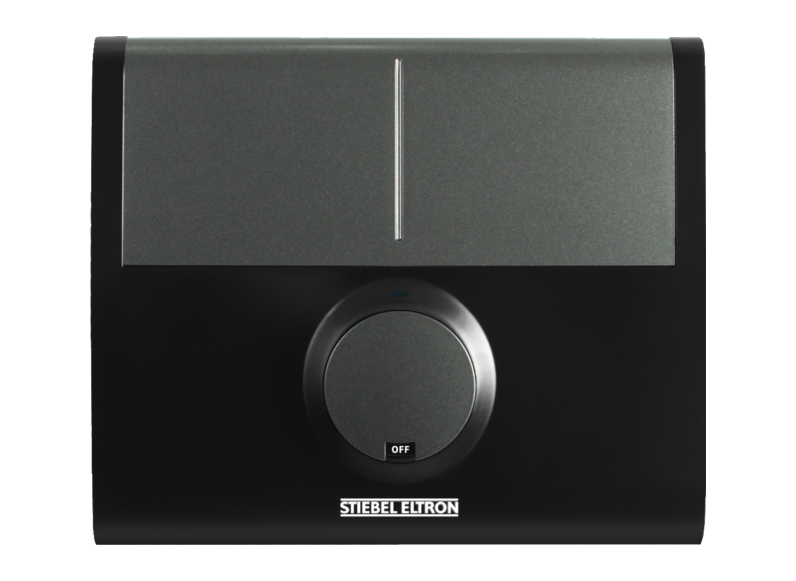

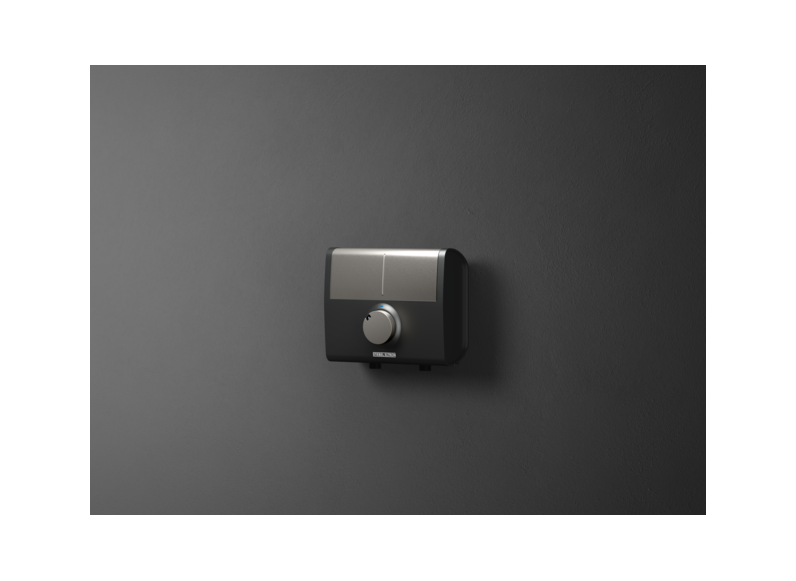

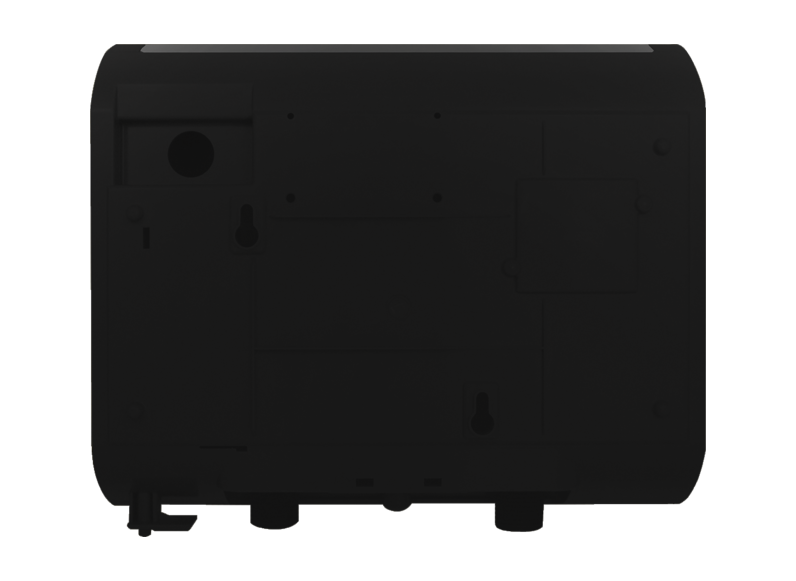

Compact instantaneous water heater
DDC 6 EC (VN) – Technical Data
-
Technical data
Cold water connection
1/2 inch
Electrical fuse protection
ELCB
Rated output
6,000 W
Rated current
27.3 A
Display
Standard
Heating element
Copper tubular
Type
Closed outlet
Automatic flow switch
true
Heating material
Copper
Temperature setting
3-stage 40/50/55 °C
Temperature control
Electronic temperature control
Anti-scalding protection
Thermostat with manual reset
Colour
black
IP rating
IP 25
Shutdown value
1.4 l/min
Starting flow rate
1.8 l/min
Depth
115 mm
Height
198 mm
Width
236 mm
Weight
2 kg
Installation Information:
Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
