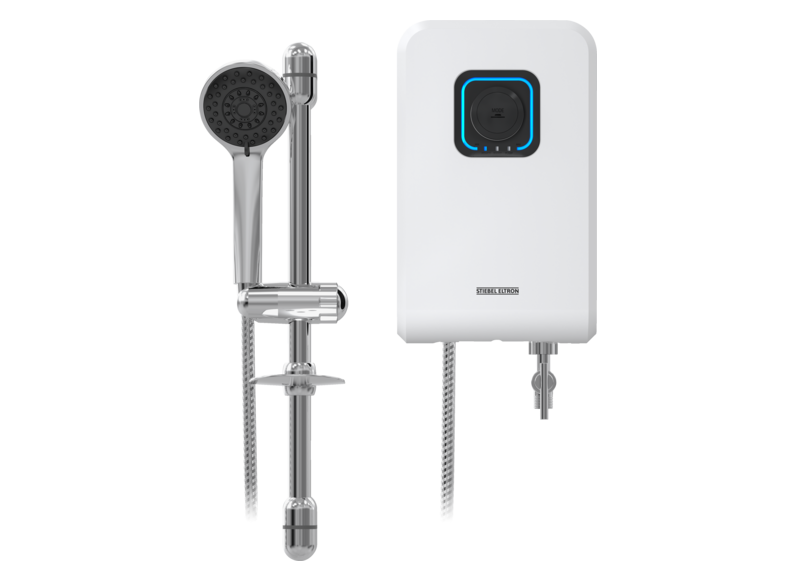

Instantaneous water heater for showers
DPL 45 EC (VN)

  • 360°
    • Temperature adjustment via stepless power control
    • More water flow with powerful and super quiet booster pump
    • Complete set optimised for a single shower
    • Elegant LED light band to indicate operation
    • Corrosion-resistant copper heating element and tank
    • 5-in-1 shower head with slide bar for convenient height adjustment
    • Anti-scalding and overheating protection with double action thermostat
    • Protection from electric shock with Earth Leakage Circuit Breaker (ELCB)
    Questions about the product Get contact

    Product details

    Engage a top performer

    With its elegant design and copper tank and heating elements, this model offers a durable, low-maintenance solution for your home. Featuring an innovative LED light to indicate operation while you shower, the DPL EC suits any bathroom design. Our water heater comes with a stepless built-in booster pump which let you adjust the pump speed according to your specific needs, so we make sure that you can enjoy a perfect shower even in low water pressure areas.

    The pleasure of water without the worries

    The built-in Earth Leakage Circuit Breaker (ELCB) detects any harmful leakage current and shuts off the power supply, thereby providing full protection from electric shock for you and your family. Moreover, our water heater is built according to the latest technical standard including EMC compatibility, for worry-free operation.


    Technical datasheet

    Product Number: 202460

    Special functions: Booster pump

    Heating element: Copper tubular

    Type: Open outlet

    Automatic flow switch: true

    Heating material: Copper

    Temperature setting: Variable

    Temperature control: Output control

    Anti-scalding protection: Double acting thermostat

    Shower accessories: 5-in-1 head shower with slide bar

    Colour: white

    IP rating: IP25

    Electrical fuse protection: ELCB

    Rated output: 4,500 W

    Electrical connection: 1/N/PE~220-240 V

    Rated voltage: 220-240 V

    Display: Standard

    Depth: 85 mm

    Height: 342 mm

    Width: 212 mm

    Weight: 1.9 kg

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
