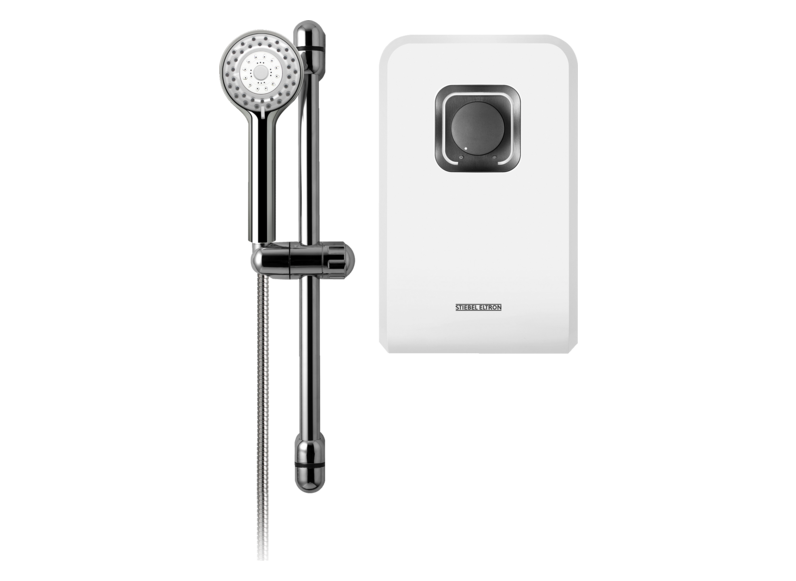

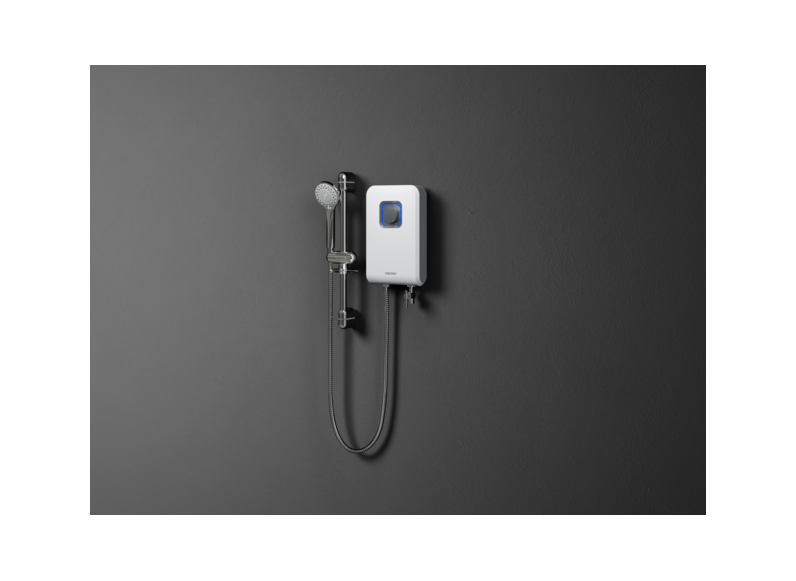

Instantaneous water heater for showers
DS 45 EC (VN) – Technical Data

  • Technical data

    Cold water connection

    1/2 inch

    Electrical fuse protection

    ELCB

    Rated output

    4,500 W

    Electrical connection

    1/N/PE~220-240 V

    Rated voltage

    220-240 V

    Rated current

    20.5 A

    Heating element

    Copper tubular

    Type

    Open outlet

    Automatic flow switch

    true

    Heating material

    Copper

    Temperature setting

    Stepless

    Temperature control

    Output control

    Anti-scalding protection

    Double acting thermostat

    Shower accessories

    5-in-1 head shower with slide bar

    Colour

    white

    IP rating

    IP 25

    Shutdown value

    0.8 l/min

    Starting flow rate

    1.3 l/min

    Depth

    85 mm

    Height

    342 mm

    Width

    212 mm

    Weight

    1.6 kg

    Technical data and product variants

    For further details and product variants please refer to data sheet.

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
