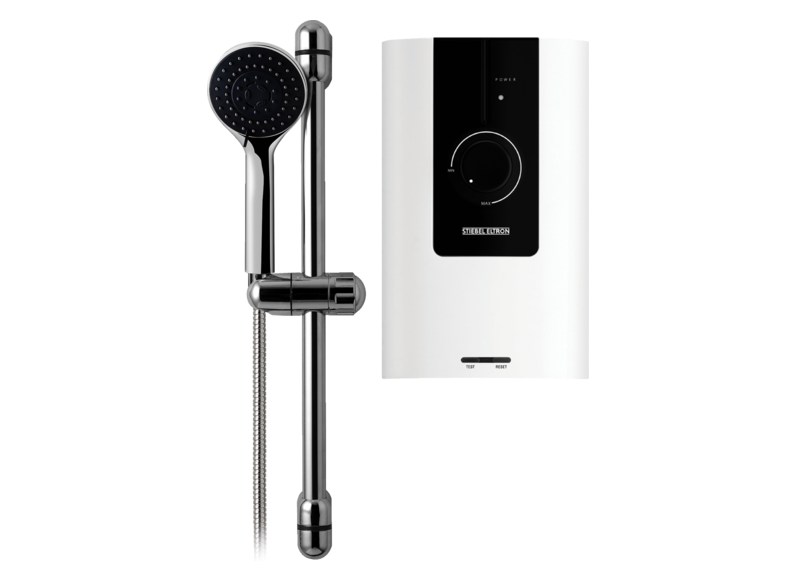

Instantaneous water heater for showers
WS 45 EC (VN)

    • Protection class IP25 (splash-proof)
    • Complete set optimised for a single shower
    • Anti-scalding and overheating protection with double action thermostat
    • Temperature adjustment via stepless power control
    • Corrosion-resistant copper heating element and tank
    • 5-in-1 shower head with slide bar for convenient height adjustment
    • Temperature adjustment via stepless power control
    • Complete set optimised for a single shower
    Questions about the product Get contact

    Product details

    Unlimited comfort and convenience


    Technical datasheet

    Product Number: 205239

    Electrical fuse protection: ELCB

    Rated output: 4,500 W

    Electrical connection: 1/N/PE~220-240 V

    Rated voltage: 220-240 V

    Display: Standard

    Heating element: Copper tubular

    Type: Open outlet

    Automatic flow switch: true

    Heating material: Copper

    Temperature setting: Variable

    Temperature control: Output control

    Anti-scalding protection: Double acting thermostat

    Shower accessories: 5-in-1 head shower with slide bar

    Colour: white

    IP rating: IP25

    Depth: 79 mm

    Height: 326 mm

    Width: 200 mm

    Weight: 1.4 kg

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
