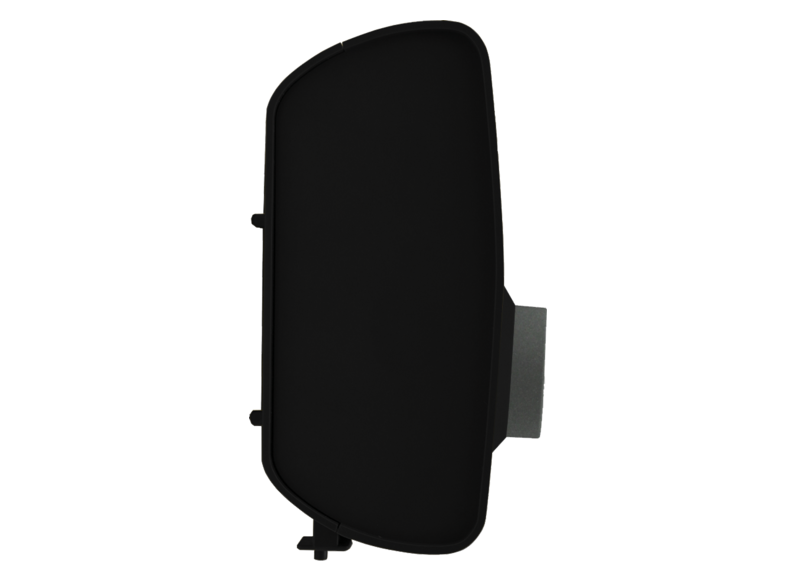

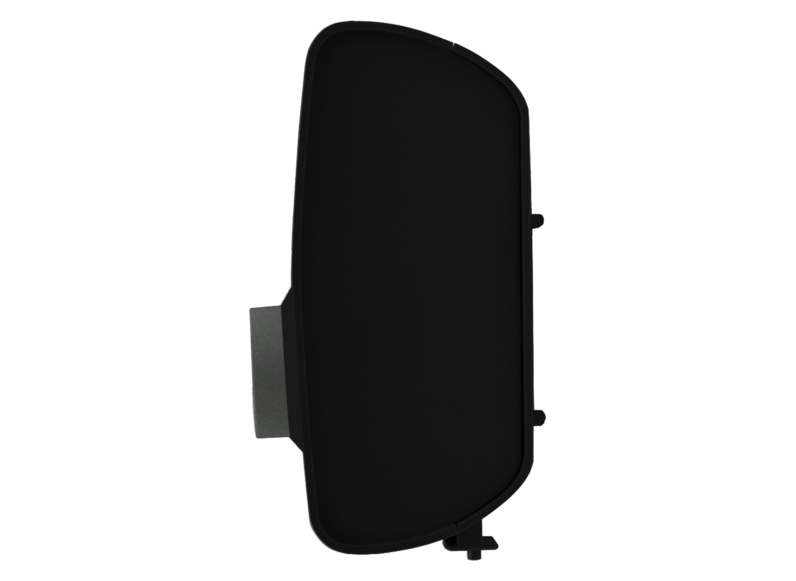

Compact instantaneous water heater
DDC 6 EC (VN)

    • 3-step temperature selection (40, 50, 55 °C)
    • Sufficient hot water for multiple draw-off points
    • Protection class IP25 (splash-proof)
    • Protection from electric shock with Earth Leakage Circuit Breaker (ELCB)
    • Compact design for space saving installation
    • Anti-scalding and overheating protection with thermal cut-out
    • Maximum shower comfort with precise electronic output temperature control
    • Corrosion-resistant copper heating element and tank
    Questions about the product Get contact

    Product details

    Efficiency with an especially compact design

    Compact and convenient, these single-phase electric instantaneous water heaters from STIEBEL ELTRON provide hot water on demand and fit neatly into even small spaces – for example, below the washbasin. Reliable, automatic temperature control lets you enjoy your chosen shower temperature from start to finish, even if the flow rate varies.

    The pleasure of water without the worries

    The built-in Earth Leakage Circuit Breaker (ELCB) detects any harmful leakage current and shuts off the power supply, thereby providing full protection from electric shock for you and your family. Moreover, our water heater is built according to the latest technical standard including EMC compatibility, for worry-free operation.





    Technical datasheet

    Product Number: 205247

    Electrical fuse protection: ELCB

    Rated output: 6,000 W

    Display: Standard

    Heating element: Copper tubular

    Type: Closed outlet

    Automatic flow switch: true

    Heating material: Copper

    Temperature setting: 3-stage 40/50/55 °C

    Temperature control: Electronic temperature control

    Anti-scalding protection: Thermostat with manual reset

    Colour: black

    IP rating: IP25

    Depth: 115 mm

    Height: 198 mm

    Width: 236 mm

    Weight: 2 kg

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
